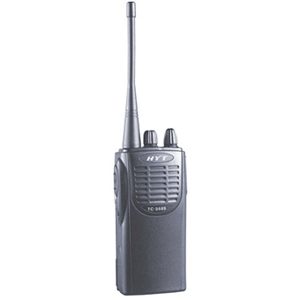

HYT TC-268S/368S

HYT TC-268S/368S Professional transceiver

GENERAL FEATURES

- Simple Operation
- Wide / Narrow Channel Bandwidth
- Wire Clonable
- Built-In 2 tone decoder and encoder
- CTCSS/DSS
- Die-Cast Chasis
- Up to 16 Channel capacity
- Priority Scanning
- MIL-STD-810/C/D/

Click here to enlarge

SPECIFICATIONS
General	TC-268S	TC-368S
Frequency range	136~150MHz 150~174MHz	400~420MHz 450~470MHz
Channel capacity	16(15+s)
Channel spacing	25KHz/12.5KHz
Power supply	7.5V/DC
Dimension	58(W)126(H)37.5(D) mm
Weight(Net)	≤200g without battery and antenna ≤400g with battery and antenna

Above specifications are tested according to TIA/EIA-603 Above specifications are subject to change without notice due to technology enhancement.
Warranty period of the main unit is 18 months.


APPLICABLE MIL-SPEC 810C/D/E
Standard	MIL 810 C Methods / Procedures	MIL 810 D Methods / Procedures	MIL 810 E Methods / Procedures
Low Pressure	500.1/Procedure I	500.2/Procedure I,II	500.3/Procedure I,II
High Temperature	501.1/Procedure I,II	501.2/Procedure I,II	501.3/Procedure I
Low Temperature	502.1/Procedure I	502.2/Procedure I,II	502.3/Procedure I,II
Temperature Shock	503.1/Procedure I	503.2/Procedure I	503.3/Procedure I
Solar Radiation	505.1/Procedure I	505.2/Procedure I	505.3/Procedure I
Rain	506.1/Procedure I,II	506.2/Procedure I,II	506.3/Procedure I,II
Humidity	507.1/Procedure II	507.2/Procedure II,III	507.3/Procedure II,III
Salt Fog	509.1/Procedure I	509.2/Procedure I	509.3/Procedure I
Dust	510.1/Procedure I	510.2/Procedure I	510.3/Procedure I
Vibration	514.2/Procedure VIII,X	514.3/Procedure I	514.4/Procedure I
Shock	516.2/Procedure I,II,V	516.3/Procedure I,IV	516.4/Procedure I,IV
