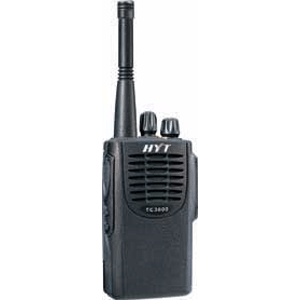

HYT TC-3000 Professional transceiver |
|
|
|
 |
| GENERAL
FEATURES |
- Simple Operation
- Wide / Narrow Channel Bandwidth
- Wire Cloanable
- Built-In 2 tone decoder and encoder
- CTCSS/DSS
- Die-Cast Chasis
- Up to 16 Channel capacity
- Priority Scanning
- MIL-STD-810/C/D/E
|
|
|
Click here to enlarge |
|
| |
|
SPECIFICATIONS |
|
General |
TC-3000 |
|
Frequency range |
VHF:130~154MHz,
154~180MHz
UHF:400~430MHz, 440~470MHz |
|
Channel capacity |
16 |
|
Channel spacing |
12.5KHz/25KHz |
Frequency Stability
(-30~+60℃,+25℃ Ref) |
2.5ppm |
|
Dimension (exclude Antenna) |
105.5*56.7*32 mm |
|
Input /Output Impedance |
50 Ω |
|
Battery |
Li-ion Battery 7.2V /
1000 mAH / 1200 mAH |
|
| |
| |
|
APPLICABLE MIL-SPEC 810C/D/E |
|
Standard |
MIL
810 C Methods / Procedures |
MIL
810 D Methods / Procedures |
MIL
810 E Methods / Procedures |
|
Low
Pressure |
500.1/Procedure I |
500.2/Procedure I,II |
500.3/Procedure I,II |
|
High Temperature |
501.1/Procedure I,II |
501.2/Procedure I,II |
501.3/Procedure I |
|
Low
Temperature |
502.1/Procedure I |
502.2/Procedure I,II |
502.3/Procedure I,II |
|
Temperature Shock |
503.1/Procedure I |
503.2/Procedure I |
503.3/Procedure I |
|
Solar Radiation |
505.1/Procedure I |
505.2/Procedure I |
505.3/Procedure I |
|
Rain |
506.1/Procedure I,II |
506.2/Procedure I,II |
506.3/Procedure I,II |
|
Humidity |
507.1/Procedure II |
507.2/Procedure II,III |
507.3/Procedure II,III |
|
Salt Fog |
509.1/Procedure I |
509.2/Procedure I |
509.3/Procedure I |
|
Dust |
510.1/Procedure I |
510.2/Procedure I |
510.3/Procedure I |
|
Vibration |
514.2/Procedure VIII,X |
514.3/Procedure I |
514.4/Procedure I |
|
Shock |
516.2/Procedure I,II,V |
516.3/Procedure I,IV |
516.4/Procedure I,IV |
|
| |
|
|
|
|
|
|
|
|
|
