HYT TC-620

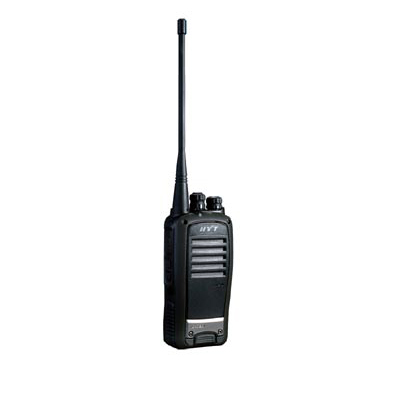

HYT TC-620 Professional transceiver

TC-620
Incorporating cutting-edge technology, HYT TC-620 portable radio portfolio is the option customized for users in property management, and service industries. In addition to the versatile functionality, easy operation, and high performance-to-price ratio characteristics, the innovative and ergonomic design makes the TC-620 satisfy users’ requirements for communication as well as pursuance for good look.
Click here to enlarge

GENERAL FEATURES
- High/Low Power Switchable
- Programmable 12.5kHz / 25kHz Channel Spacing
- Monitor
- Battery Save
- Low Battery Alert
- Busy Channel Lockout
- Time-out Timer
- PC Programmable
- Wired Clone
- CTCSS/CDCSS
- Selectable Squelch Level (0-9)
- Channel Scan
- Voice Operated Transmit (VOX)


SPECIFICATIONS
General TC-620
Frequency range VHF: 146-174 MHz
UHF: 400-420 MHz, 440-470 MHz, 450-470 MHz,
470-490MHZ
Channel capacity 16
Channel spacing 25/12.5KHz
Frequency Stability ±2.5ppm
Operating Temperature -20°C ~ +50°C
Dimension (exclude Antenna & with battery) 117mm×54mm×31mm (H×W×D)
Weight(with antenna & battery) 275 g
Antenna Impedance 50 Ω
Battery 1200 mAH (Li-Ion)
